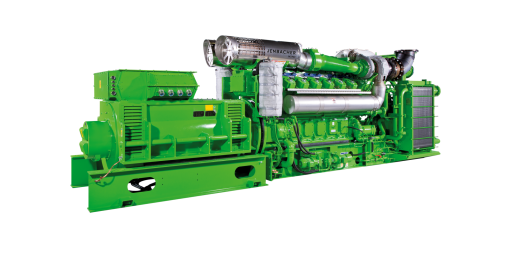

Jenbacher JMS 612
The electrical power of Jenbacher JMS 612, a 12-cylinder unit from Type 6 Jenbacher line, is 2004 kW. Its distinctive characteristics include high power density, elevated electrical efficiency, and minimal emissions.
Characteristics
Electrical Output, kW
—
2004
Termal Output, kW
—
2029
Voltage, kV
—
6.3, 10.5
Efficiency
—
43.8
Fuel Consumption, nm³/h
—
463
Compression Ratio
—
11.8 : 1
Send a request to find out the current product price
Jenbacher JMS 612

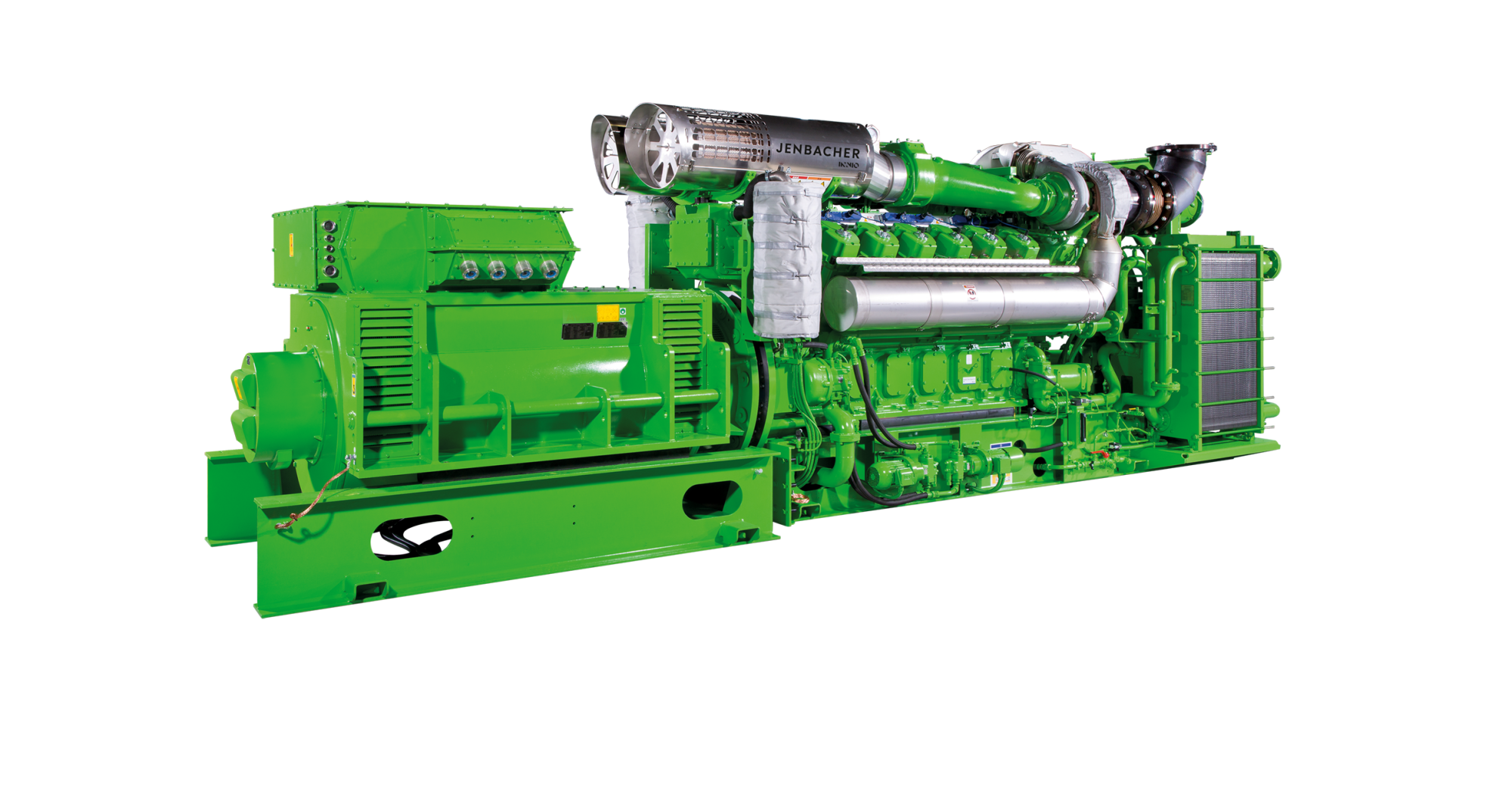

The engine and generator are interconnected and elastically mounted on a support frame. This setup ensures that the support frame of the unit remains isolated from minor vibrations originating from the engine and generator. Residual vibrations are eliminated by placing the unit on insulating mats, such as force-measuring mats. This enables the unit to be positioned on any surface capable of supporting a static load.
Characteristics
|
Electrical Output, kW
|
2004 |
|
Termal Output, kW
|
2029 |
|
Voltage, kV
|
6.3, 10.5 |
|
Efficiency
|
43.8 |
|
Fuel Consumption, nm³/h
|
463 |
|
Compression Ratio
|
11.8 : 1 |
|
Burn Technology
|
LEAN BURN |
|
Control Panel
|
DIA.NE XT4 |
|
Weight, kg
|
19100 |
|
Engine speed, rpm
|
1500 |
|
Size (WxHxD), m
|
2.8 х 7.6 х 2.2 |
|
Country of Origin
|
Austria |
Documents
For detailed information about our equipment, please feel free to contact our specialists by phone +7-778-130-88-33 or by sending a request to info@tmenergo.kz.
