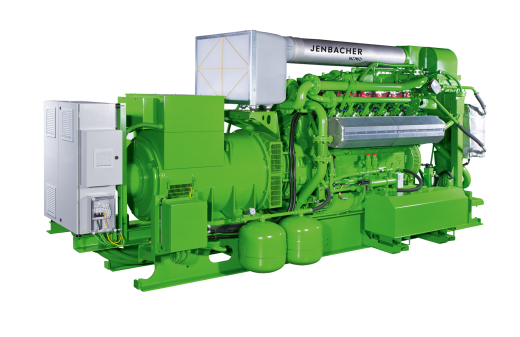

Jenbacher JMS 312
A 12-cylinder gas engine from INNIO’s Jenbacher Type 3 line is designed for operation on various fuel gases.
Characteristics
Electrical Output, kW
—
635
Termal Output, kW
—
791
Voltage, kV
—
0.4
Efficiency
—
39.5
Fuel Consumption, nm³/h
—
164
Compression Ratio
—
9.0 : 1
Send a request to find out the current product price
Jenbacher JMS 312
Jenbacher JMS 312 is a four-stroke internal combustion gas engine equipped with turbocharging and a fuel mixture cooler. The ignition system is high-voltage, and the gas-air mixture preparation control system is electronic. The engine is equipped with the latest LEANOX lean air mixture combustion system, developed and patented by Jenbacher. The engine and generator are interconnected and mounted elastically on a support frame. This setup ensures that the support frame of the unit remains isolated from minor vibrations originating from the engine and generator. Residual vibrations are eliminated by placing the unit on insulating mats, such as force-measuring mats. This enables the unit to be positioned on any surface capable of supporting a static load.
Jenbacher JMS 312 is equipped with a Leroy Somer low-voltage synchronous generator.
Jenbacher JMS 312 is equipped with a Leroy Somer low-voltage synchronous generator.
Characteristics
|
Electrical Output, kW
|
635 |
|
Termal Output, kW
|
791 |
|
Voltage, kV
|
0.4 |
|
Efficiency
|
39.5 |
|
Fuel Consumption, nm³/h
|
164 |
|
Compression Ratio
|
9.0 : 1 |
|
Burn Technology
|
LEAN BURN |
|
Control Panel
|
DIA.NE XT4 |
|
Weight, kg
|
8000 |
|
Engine speed, rpm
|
1500 |
|
Size (WxHxD), m
|
2.3 х 4.7 х 1.8 |
|
Country of Origin
|
Austria |
Documents
Questions and answers
Is your company an official partner of INNIO?
Yes, ETS-Astana has the status of an official distributor and service partner of INNIO in the Republic of Qazaqstan for Jenbacher and Waukesha gas engine lines.
Does ETS-Astana have a spare parts warehouse?
ETS-Astana tries to maintain a limited range of consumables and the most worn-out components of gas engines in its local warehouses. But all main supplies of spare parts are made to order.
For detailed information about our equipment, please feel free to contact our specialists by phone +7-778-130-88-33 or by sending a request to info@tmenergo.kz.
